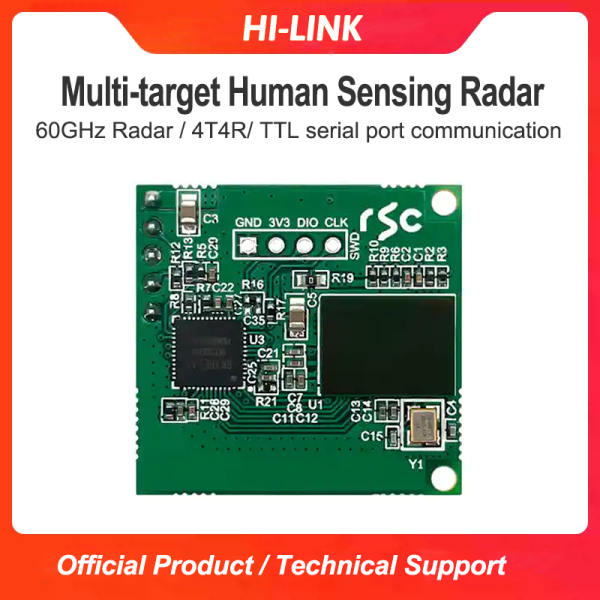

Hi-link 60G 4T4R high-precision multi-target up to 10 human movement trajectory sensing radar module HLK-LD6001A

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product introduction

Compared with traditional vision, infrared, laser and other sensing methods, millimeter-wave radar is not affected by light and can achieve sensorless active room detection all day long.

It can detect indoor occupants and has personal privacy protection function. It is currently the best sensor for home scene applications. This product uses a domestically produced chip and is independently controllable to achieve accurate tracking and positioning of multiple people indoors. It can also detect people in static states such as reading or sleeping, and can suppress interference from curtains, green plants, etc. This product has the advantages of low cost, national production, high reliability and high performance.

No.

Function

Detailed introduction

multipurpose target

1) It can realize target tracking function for up to 10 people, including target movement trajectory and target real-time location;

2) Strong ability to suppress false targets (curtains, green plants, multipath, etc.);

3) High sensitivity for detecting micro-moving targets (stationary, shaking, waving, etc.).

regional division

Users can flexibly configure the detection area

Product parameter introduction

No.	Parameters	No.	Parameters
1	Install method: ceiling installation	6	Peak power consumption: 1.7w
2	Detection distance: 0.5~8m (The effective projection ground is a circle with a radius of 3.5m, so as to Installation height 2.7m)	7	Communication method: TTL serial port
3	Azimuth and pitch angle coverage: ±60°	8	Working frequency: 60-64GHz
4	Power: 3.3V	9	Processing cycle: ≤30ms
5	Average power consumption: 0.3w	10	size：29.36*28mm

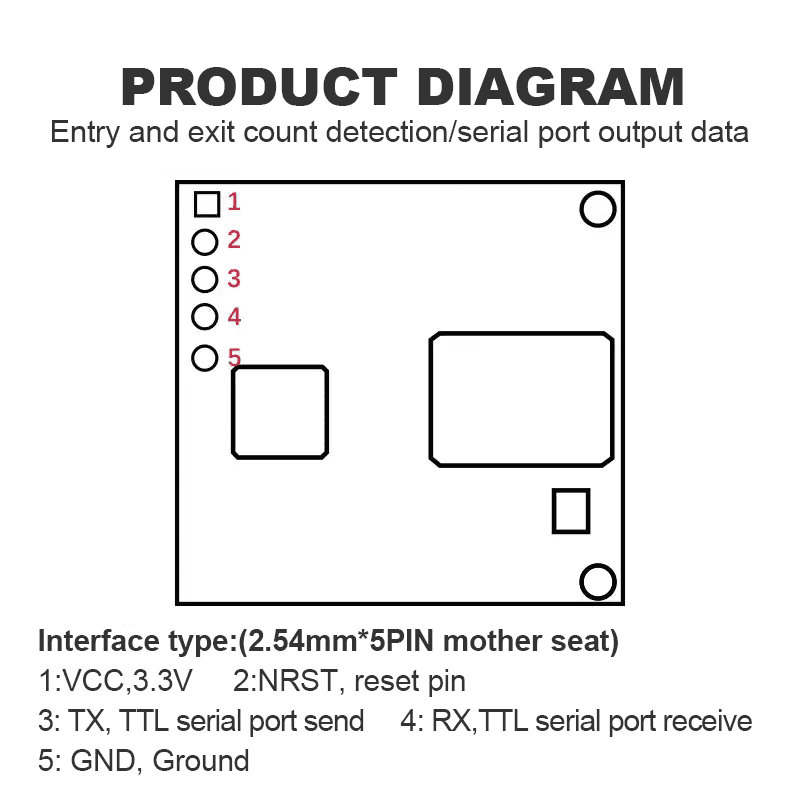

product diagram 拷贝
