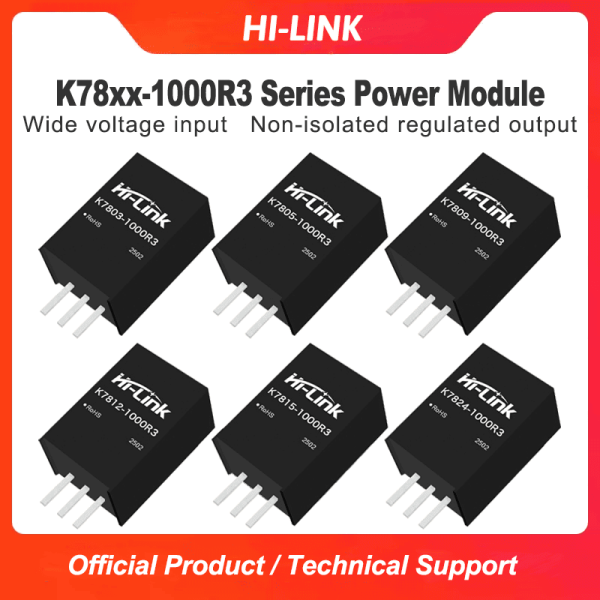

K7803-1000R3/K7805-1000R3 DCDC non isolated power module with ultra wide voltage input ± 3.3V/5V regulated output

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Quantity:

Product Details

Download files:

https://d.hlktech.net/Mobile/Download

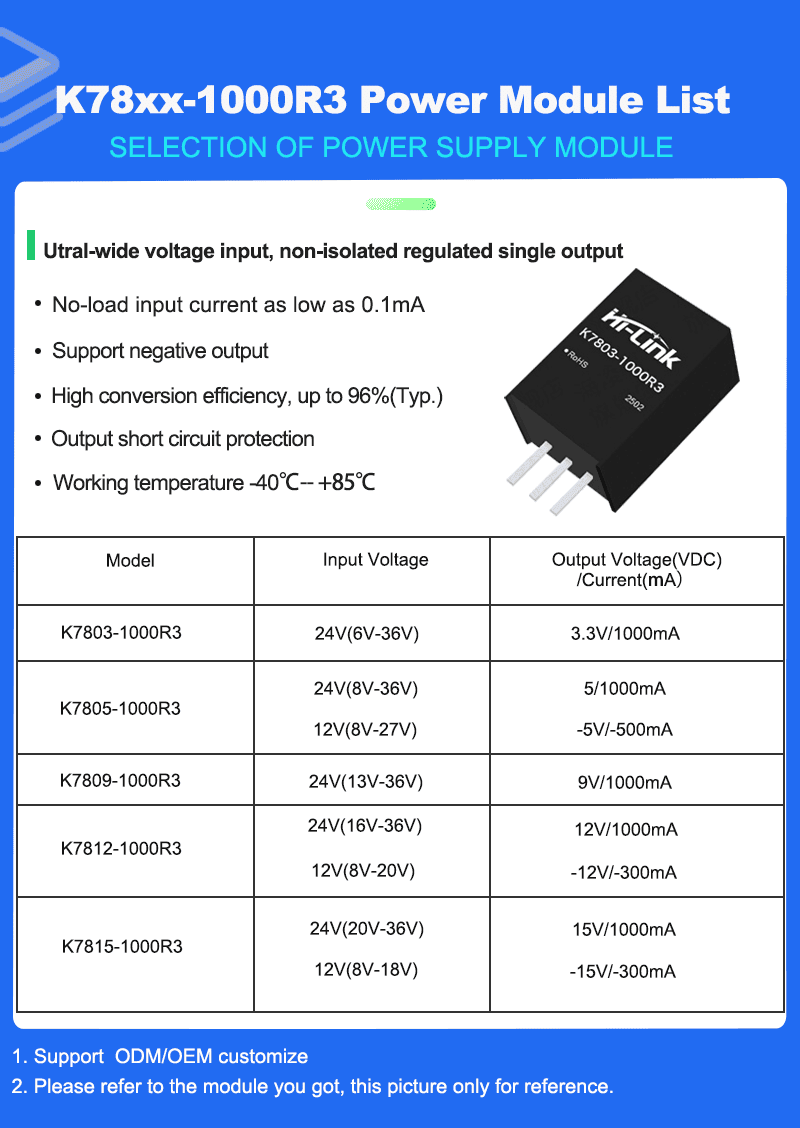

Product Feature

1. Small SIP-3 package, international standard pin

2. No load input current as low as 0.1mA

3. Transfer efficiency up to 96%

4. Support negative output

5. Output short-circuit protection

6. Operating temperature range ：-40°C~+85°C

Input Characteristics

Item	Working conditions	Min.	Typ.	Max.	Unit
No load input currrent	Positive output	-	0.1	1.0	mA
Reverse input		prohibit
input fliter type		capacity fliter

Output Characteristics

Item	Working and testing conditions		Min	Typ.	Max
voltage accuracy	Full load, input voltage range	3.3V output	--	±2	±4
voltage accuracy	Full load, input voltage range	Others	--	±2	±3
Line Regulation	Full load, input voltage range		--	±0.2	±0.4
Load Regulation	10%-100% load	3.3/5V output	--	±0.6	--
Load Regulation	10%-100% load	others	--	±0.3	--
Ripple&Noise	Pure resistive load, 20MHz bandwidth, peak to peak value, 20% -100% load		--	20	70
Temperature drift coefficient	Working temperature -40℃-+85℃		--	--	±0.03
Transient response deviation	Nominal input voltage, 25% -50% -25%, 50% -75% -50% load step change		--	50	250
During transient recovery			--	0.2	1
Short Circuit Protection			Long term short circuit, automatic recovery

Notes:

①The testing method for ripple and noise adopts parallel line testing method

②When the load is below 10%, the maximum ripple and noise output of 3.3V/5V is 150mVp-p, and the maximum ripple and noise output of 9V/12V/15V is 2% Vo.

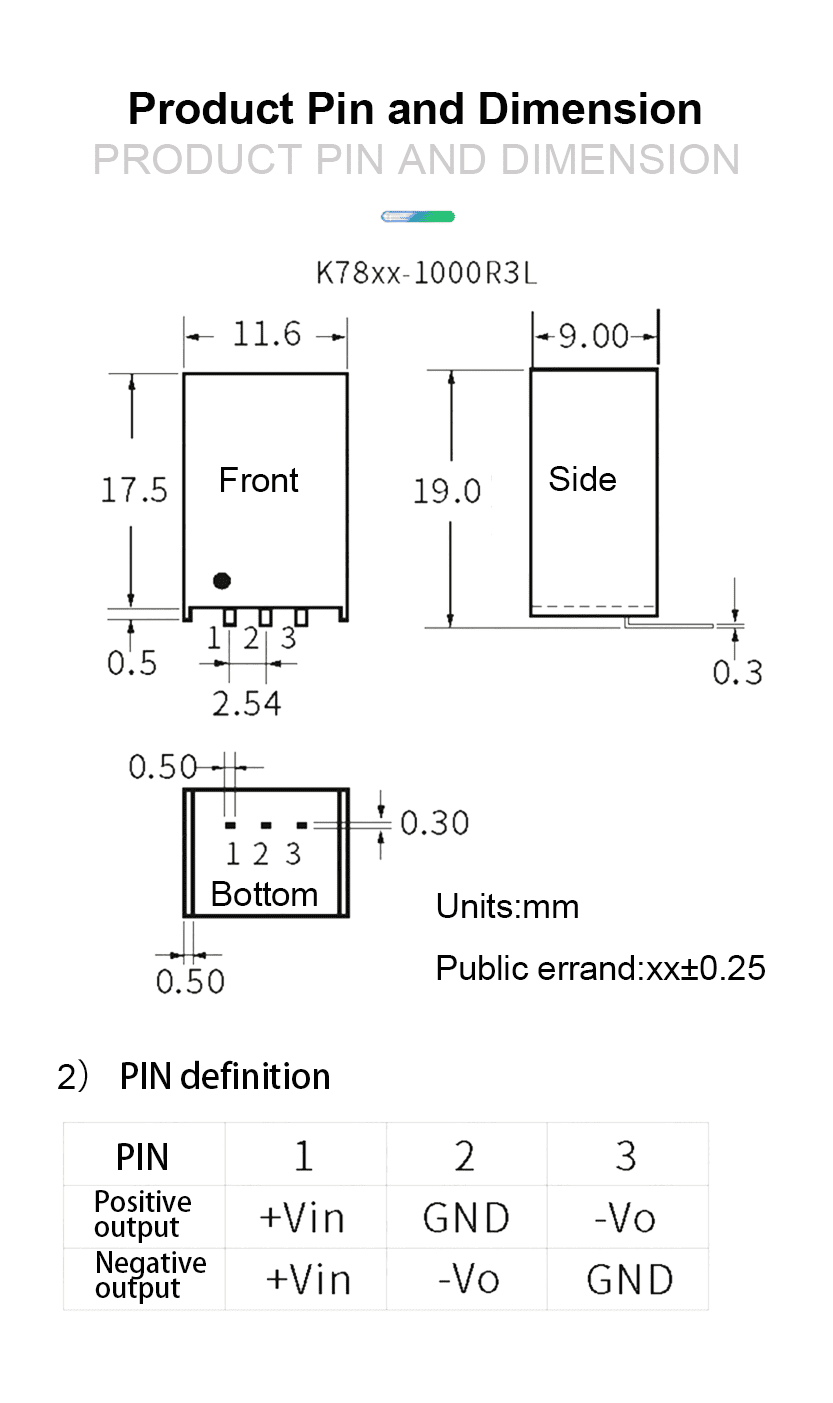

dimension 拷贝
