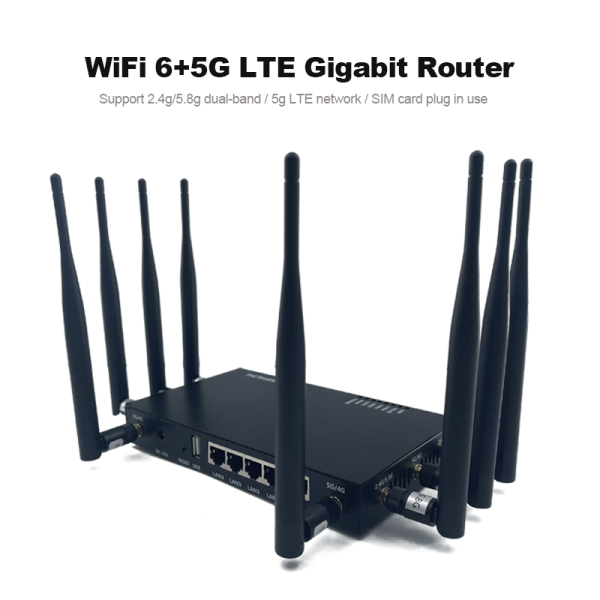

Hi-Link HLK-GD11 WiFi 6+5G LTE Gigabit Router with M.2 Interface 256MB DDR3/ 16MB Flash

Product Details

HLK-GD11 is a high-performance WiFi 6+5G router developed by Hi-Link electronics. It uses RM60 module, supports dual band WiFi 6, 5G module with M.2 interface, 12VDC power supply, 1 Gigabit Wan and 4 Gigabit LANs. Providing users with wireless long-distance data transmission services and routing functions.

HLK-GD11-2

Features

* IEEE 802.11 a/b/g/n/ac/ax wireless protocol

* Dual core 880mhzcpu, 256MB DDR3, 16MB flash

* Supports 20/40MHz bandwidth and 5G 20/40/80MHz in the 2.4GHz Band

* Supports 2.4g/ 5.8 GHz band,with data rate up to574+1201Mbps

* 2×2 MU-MIMO

* Bulit in TCP/IP protocol stack

* Supports wireless upgrade （OTA）

* 12V DC power supply

Simple Sepcifications:

Main chipset: RM60module-MT7621AT+MT7905DAN+MT7975DN

Main Frequency: 880MHz

RAM: DDR3 256MB

Flash: 16MB

Temperature: Ambient temperature: -20~50C, Storage：-40℃～70℃

Humidity: 5~95%(non-condensing)

Size: 186mm*110mm*31mm (without antenna)

Parameters

WIFI part	Wireless standards	IEEE 802.11a/b/g/n/ac/ax
	frequency range	2.412-2.484GHz 5.150-5.850GHz
	2.4G RF parameters	11b 11M: TX: 23±1.5dBm 11g 54M: TX: 20±1.5dBm 11n HT20 MCS7: TX: 19±1.5dBm 11n HT40 MCS7: TX: 19±1.5dBm 11ac VHT20 MCS8: TX: 17±1.5dBm 11ac VHT40 MCS9: TX: 17±1.5dBm 11ax HESU20 MCS11: TX: 16.5±1.5dBm 11ax HESU40 MCS11: TX: 16.5±1.5dBm
	5.8G RF parameters	11a 54M: TX : 18±1.5dBm 11n HT20 MCS7: TX : 18±1.5dBm 11n HT40 MCS7: TX : 18±1.5dBm 11ac VHT20 MCS8: TX : 17±1.5dBm 11ac VHT40 MCS9: TX : 16.5±1.5dBm 11ac VHT80 MCS9: TX : 16.5±1.5dBm 11ax HESU20 MCS11: TX : 15±1.5dBm 11ax HESU40 MCS11: TX : 15±1.5dBm 11ax HESU80 MCS11: TX : 15±1.5dBm
	Number of channels	2.4G:1-11 5.8G:36-165
	Antenna type	omnidirectional rod antenna, gain 6dbi (2.4G/5.8G dual-frequency antenna * 4)
5G part	Module interface	M.2 Interface
	5G frequency range	N28/N41/N78/N79 2G/3G/4G/5G Full netcom
	Module support list	Quectel RM500U, RM500Q(Qualcomm) Fibocom FM650(Unisoc)
	Antenna Type	Fully directional rod antenna with gain 6dbi (5G LTE full netcom antenna * 4)
Software parameters	Working mode	Router, Repeate, AP, Client, Bridge
	Wireless security	Wireless MAC address filtering, WPA-PSK, WPA2-PSK, WPA3 wireless encryption
	Firmware upgrade	Web upgrade
	Networking protocol	IPv4, TCP/UDP
	User configuration	Web configuration
Electrical parameters	Power supply interface size	DC5.5*2.1mm
	power requirement	DC12V/1.5A
Other ports	Internet access	1 Gigabit WAN port + 4 Gigabit LAN port
	USB	1 USB2.0 Port
	SIM card	1 card slot(Nano SIM)
	TF card	1 TF card slot
	Key	1 reset button
	Antenna interface	2.4G/5.8G WiFi:SMA External screw inner needle 4 2G/3G/4G/5G netword :SMA External screw inner hole4

Interface reference

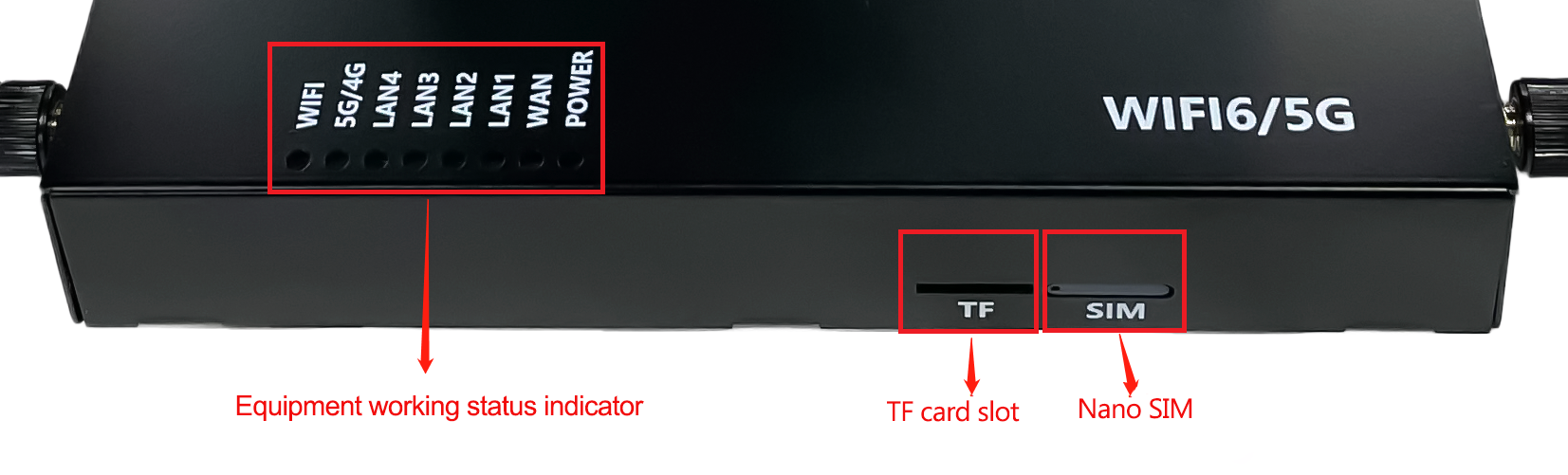

* Front interface

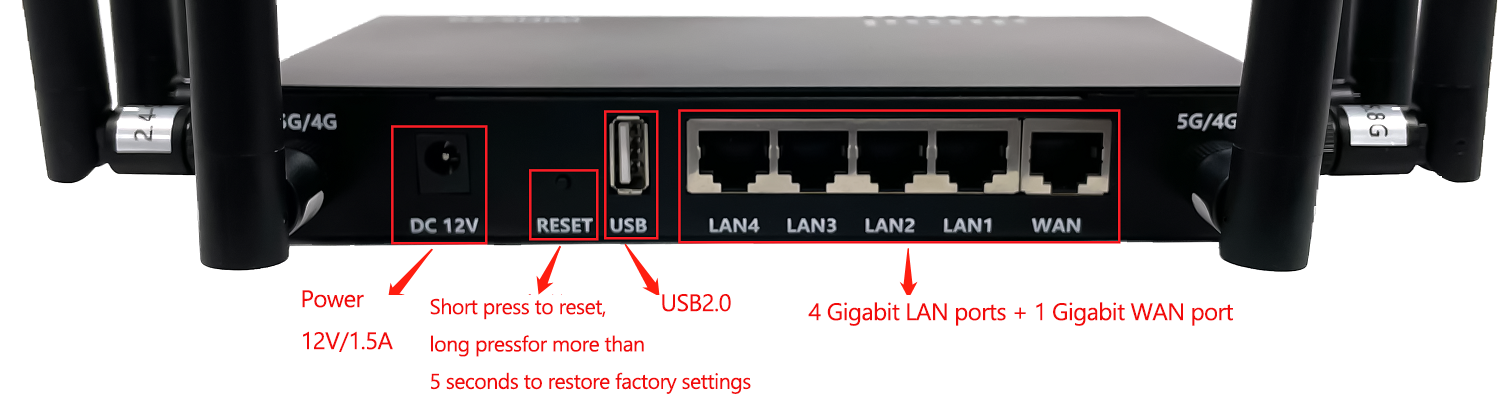

* Back interface

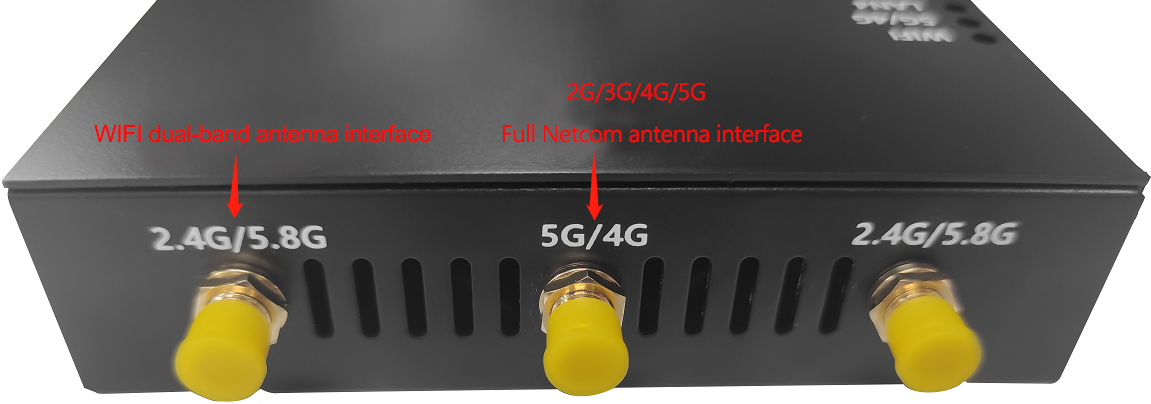

* Antenna interface

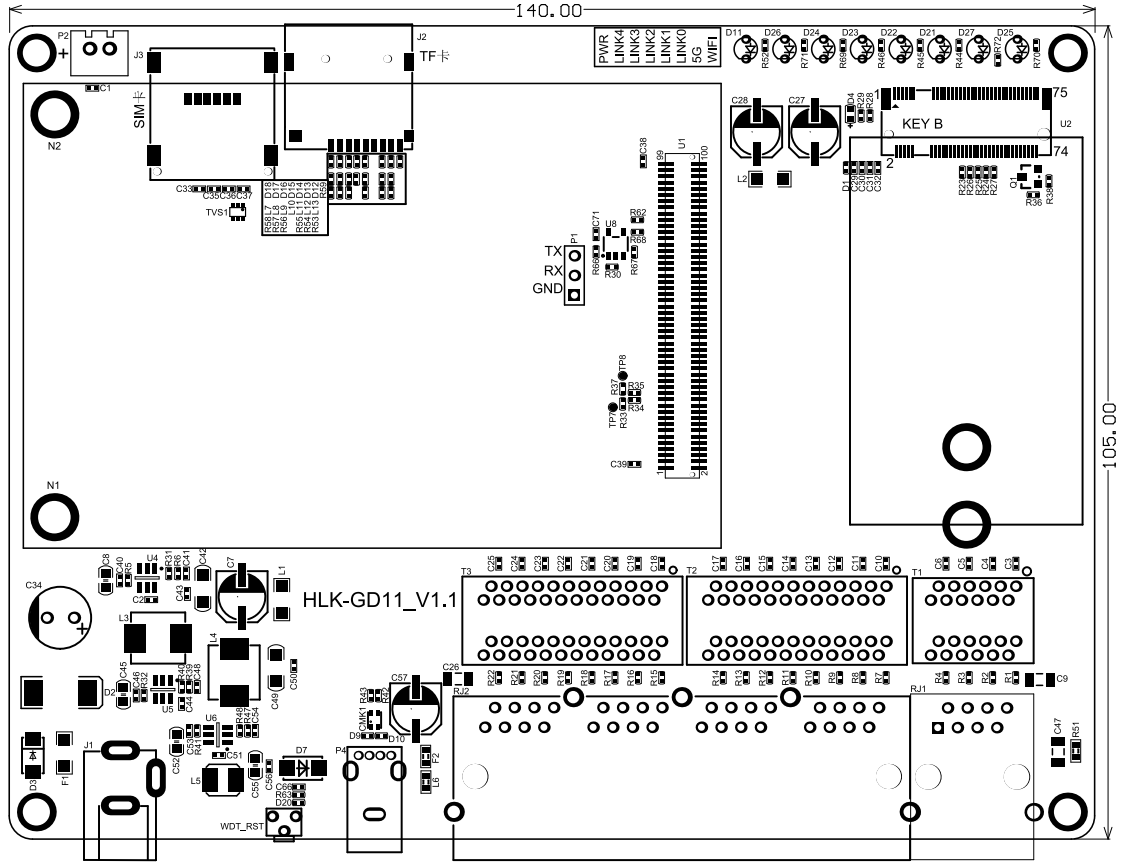

Module size and FAQ
